用于视频领域，通信系统及信号控制系统；用于视频监控线路、广播信号控制、公共电视天线、闭路电视监控系统；用于无线电通讯、传输系统及单向控制或是高频率机器内部配线。 |
Applicable to video field, communication system and signal controlling system; video monitor circuitry, broadcast signal control, public TV antenna, closed-circuit TV monitor system; wireless telecommunication, transmission system and unilateral control or internal wire of high-frequency machine. |
|

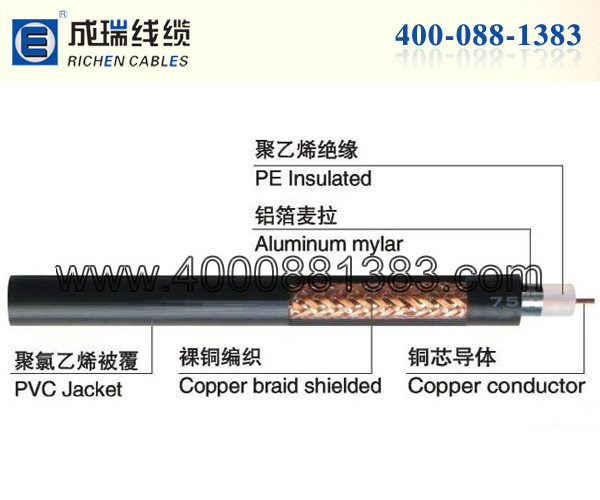

◆特性阻抗：75Ω
◆导体使用单支裸圆铜线
◆实芯聚乙烯绝缘,聚氯乙烯护套
◆软裸铜线编织屏蔽&外包铝箔屏蔽
◆阻燃性能达到或超过GB/T 18380-2008试验要求
◆烟密度小,透光率高
◆低烟无卤性能满足GB/T 17650.1规定
◆烯烧时释出气体的PH值和电导率GB/T 17650.2规定
|
◆ Characteristic impedance:75Ω
◆ Single bare round copper as internal conductor
◆ Solid polyvinyl insulated,PVC jacket
◆ Bare soft copper wire braid shield&Aluminum shielded outside
◆ Flame-retarant performance satisfy GB/T 18380-2008
◆ Small smoke density and high permeablity
◆ Low-halogen(non-halogon)performance satisfy GB/T 17650.1
◆ PH value of ejective gas complied to standard GB/T 17650.2
|
